PA hotmelt low pressure molding
Side Injection
Side Injection DualWorking Stations Air Over Oil Cylinder Machine

BETA 2000H

Side Injection DualWorking Stations Air Over Oil Cylinder Machine

  •   Intuitive touch screen operation.

  •   Dual independent working stations.

  •   Separate 7 liter melting tank.Dual tankis optional.

  •   Air over oil cylinder gives bigger clamp force for large shot size.

  •   The gear pump is made of hard-wearing material, which is stable, injection volume accuracy ±0.1g, maximum shot size is 5g/s.

  •   Injection pressure range 1~50kg, which is controlled by the pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.

  •   Over temperature alarm and automatic heating stop functions.

  •   Five thermal control zones for precise melt control.

  •   Mechanical ejection system and control for pneumatic ejection.

  •   Equipped with light curtain and emergency stop button for operator safety.




Application



  LPMS?  machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.

  The benefits of side injection is that when one large cavity being encapsulated from the center of the mold, which can prevent the gate mark from the center of product.





Specification

Machine Size / Weight

1300 mm x 950 mm x 1865 mm / 610 kg

51.18 in x 37.40 in x 73.43 in / 1345 lbs

Footprint

1300 mm x 1700 mm  |  51.18 in x 66.93 in

Working Station Height

850 mm  |  33.47 in

Melting Tank

Melt on demand 7 liter x 1 (Option x 2)

Auto Feeding System

Optional

Gun Model & Tip

LPMS-G10x 2 / 36.4°or90°

Heated Hose [1]

1.6m x 2

Electricity[2]

200-240VAC / 1 Phase / 50 Hz

Temperature Control Zones

5

Temperature Range

Ambient up to 250°C / 485°F

Max .Power

6 Kw

Min. Air Pressure

0.5MPa  |  73 Psi

Air Consumption

0.18 m3 / min  |  6.3ft3 / min

Clamping

Air Over Oil Cylinder

Clamping Force

Max.5 Tons Option 10 Tons

Clamping Stroke

150 mm  |  5.91 in

Control System

7”HMI , PLC controlled

Safety Protection

Light Curtain, Emergency stop button

Mold Set Size

230 mm x 120 mm x150 mm / 25 kg

9.06 in x4.72 in x5.91 in / 55.16 lbs

Max. Mold Set Size

300 mm x 200 mm x150 mm

11.81 in x7.87 in x 5.90 in

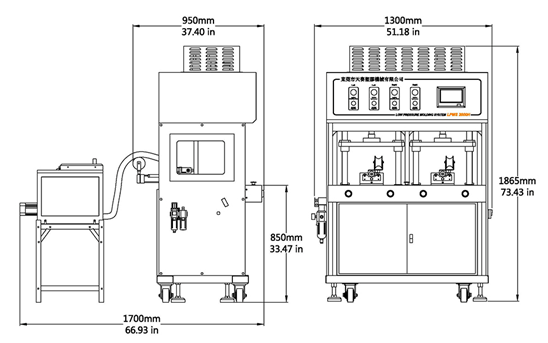

Dimension






Video
