5 liter melt tank, which is separated from machine.
Low Pressure Molding process controlled by Programmable Logic Controller.
Human Machine Interface with multi-language (Chinese, English, French, German, Italian).
Three thermal control zones.
Mechanical ejection system and control for pneumatic ejection.
Two safety start buttons, light curtain to protect operator.
Application
Our Side Low pressure molding Machinemachines are engineered for low pressure molding applications. Using specialty resins to encapsulate delicate parts.
Applications including : automotive electronics, PCBA,coil, fiber-optic, LED lighting, wire, cable, etc.
Specification
Machine Size / Weight | 970 mm x 970 mm x 1700 mm / 325 kg 38.19 in x 38.19 in x 66.93 in / 717 lbs |
Footprint | 970 mm x 1700 mm | 38.19 in x 66.93 in |
Working Station Height | 840 mm | 33.07 in |
Packing Size / Weight | 1010 mm x 990 mm x 1850 mm / 365 kg 39.76 in x 38.98 in x 72.83 in / 805 lbs |
Melting Tank Model & Q'ty | MT-05-1000 x 1 |
Auto Feeding System | Optional |
Maximum shot size | 5.8 g / RPM |
Injection rate | 5 grams / second |
Gun Model & Tip | LPMS-G10 x 1 / 36.4° or 90° |
Heated Hose Model & Q'ty | LPMS-H12J x 1 |
Electricity | 200-240VAC / 1 Phase / 50 or 60 Hz |
Temperature Control Zones | 3 |
Temperature Range | Ambient up to 250°C / 485°F |
Max .Power | 4.5 Kw |
Pump Motor | 120 W |
Min. Air Pressure | 0.5 MPa | 73 Psi |
Air Consumption | 0.1m3 / min | 3.5ft3 / min |
Clamping | Air Cylinder |
Clamping Force | Max. 1.2 Tons |
Clamping Stroke | 150mm | 5.91 in |
Ejector | Pneumatic |
Ejector Force | 980 N |
Ejector Stroke | 10 mm |
Control System | 7 ”HMI , PLC controlled |
Safety Protection | Dual palm buttons , Light curtain |
Mold Set Size | 230 mm x 120 mm x 150 mm / 25 kg 9.06 in x 4.72 in x 5.91 in / 55 lbs |
Max . Mold Set Size | 300 mm x 200 mm x 150 mm 11.81 in x 7.87 in x 5.91 in |
Max . Part Size | 60 mm x 50 mm x 18 mm 2.36 in x 1.97 in x 0.71 in |

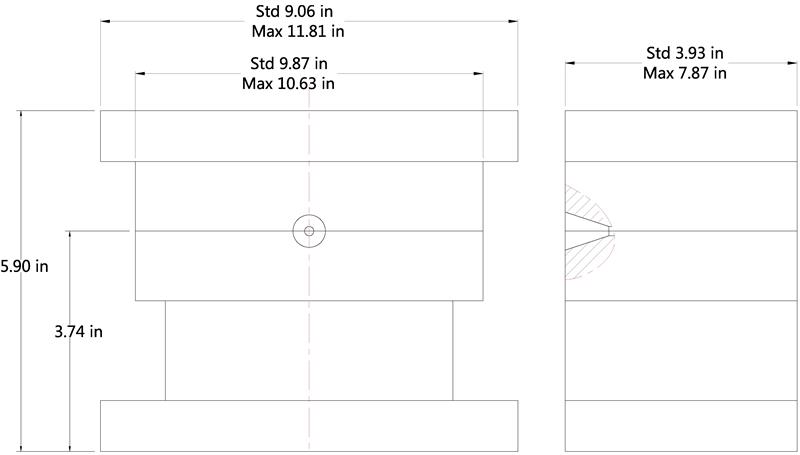

Dimension
