PA hotmelt low pressure molding
Side Injection
Side Injection Compact Machine

BETA 600

Side Injection Compact Machine

  • Intuitive touch screen operation.

  • 3 liter melting tank integrated into machine.

  • The gear pump is made of hard-wearing material,which is stable,injection volume accuracy ±0.1g,maximum shot size is 5g/s.

  • Injection pressure range 1~50kg, which can be controlled by the pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.

  • Over temperature alarm and automatic heating stop functions.

  • Two temperature control zone work independently.

  • Light curtain and photoelectricity to protect workers during the operation.

  • Ejection system.

Application

         LPMS? machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.

         The benefit of side injection is that when one large cavity being encapsulated from the center of the mold, which can prevent the gate mark from the center of product.



Specification

Machine Size / Weight

800 mm x 830 mm x 1650 mm / 320 kg

31.50 in x 32.68 in x 64.96 in / 705 lbs

Footprint

800 mm x 830mm / 31.50 in x 32.68 in

Working Station Height

850 mm  |  33.46 in

Packing Size / Weight

1060 mm x 1020 mm x 1750 mm / 355 kg

41.73 in x 40.16 in x 68.90 in /782 lbs

Melting Tank Model & Q'ty

MT-03-600 x 1

Auto Feeding System

Optional

Maximum shot size

5.8 g / RPM

Gun Model & Tip

LPMS-G02 x 1 / 36.4° or 90°

Heated Hose Model & Q'ty

N/A

Electricity

200-240VAC / 1 Phase / 50 Hz

Temperature Control Zones

2

Temperature Range

Ambient up to 250°C / 485°F

Max .Power

4 Kw

Min. Air Pressure

0.5 MPa  |  73 Psi

Air Consumption

0.1m3 / min  |  3.5ft3 / min

Clamping

Air Cylinder

Clamping Force

Std. 0.75 Ton (Option1.2 Tons)

Clamping Stroke

Std.125 mm (Option 150 mm)

Std.4.92 in (Option 5.91 in)

Control System

7 ”HMI , PLC controlled

Ejector

Air Cylinder

Ejector Force

980 N

Ejector Stroke

10 mm

Safety Protection

Light Curtain, Side Safety doors ,Protective Cover

Mold Set Size

180 mm x 100 mm x 150 mm /16 kg

7.09 in x 3.94 in x 5.91 in /35.27 lbs

Max . Mold Set Size

250 mm x 120 mm x 150 mm

9.84 in x 4.72 in x 5.91 in

Max . Part Size

50 mm x 45 mm x 7 mm

1.97 in x 1.77 in x 0.28 in

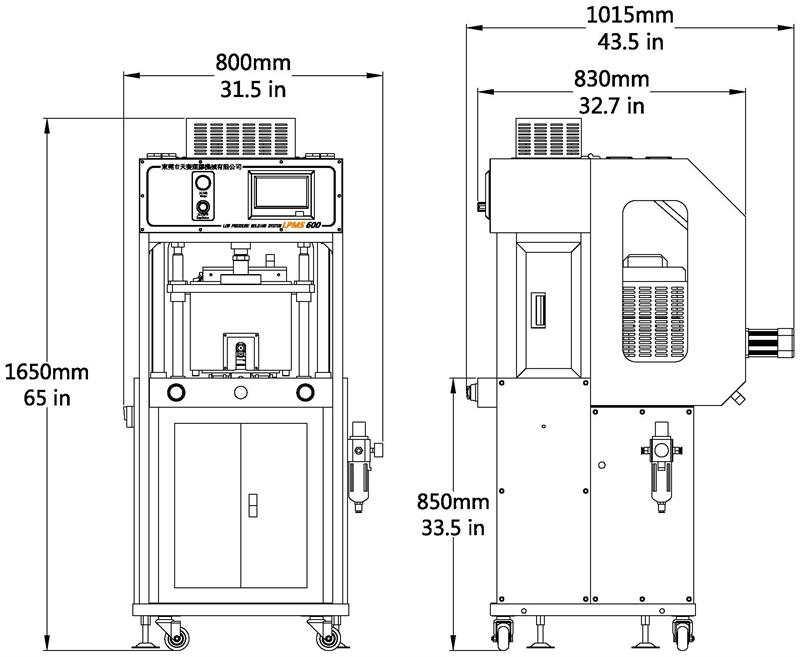

Dimension
