PA hotmelt low pressure molding
Side Injection
Side Injection Dual Working Stations Air Over Oil Cylinder Compact Machine

LPMS 2200H

Side Injection Dual Working Stations Air Over Oil Cylinder Compact Machine


  • 7 liters melting tank is integrated into the machine.

  • Side injection suitable for multiple cavity and large size part molding. Flexible from simple tools to complicated tools with slide blocks.

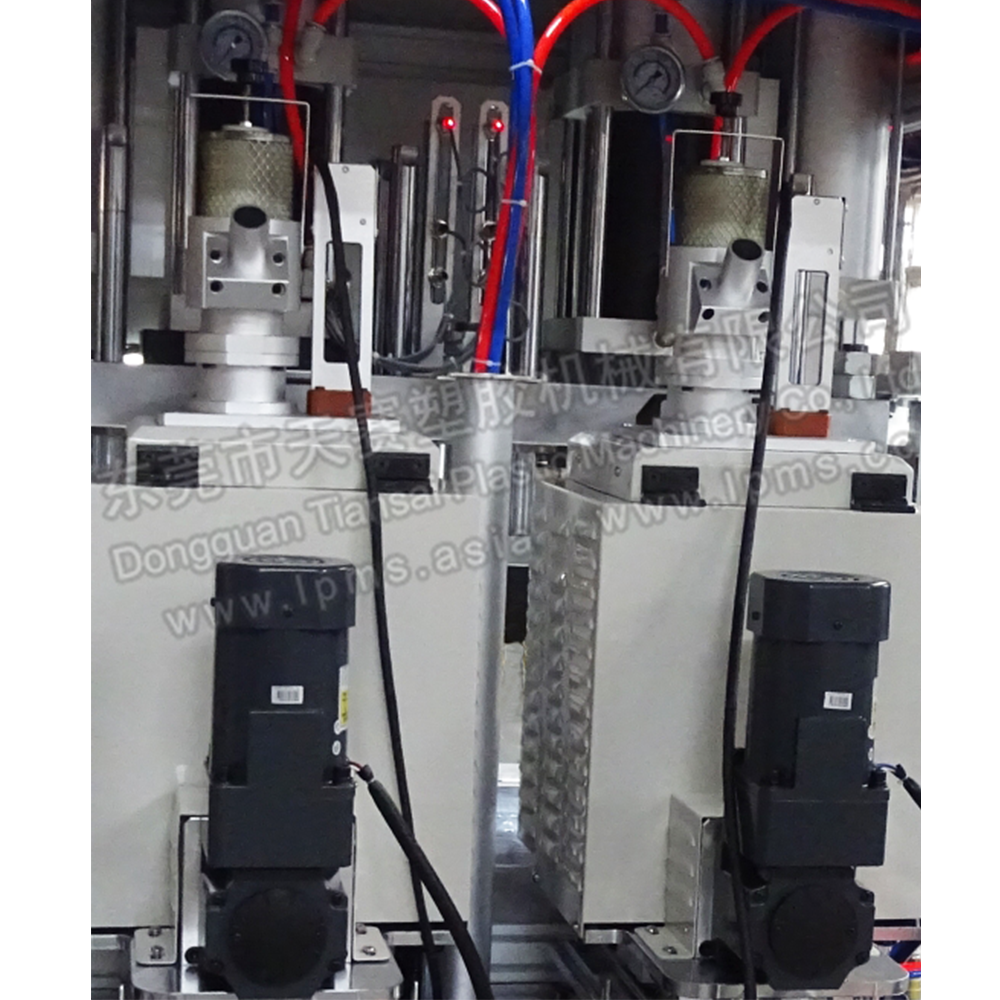

  • Dual tank is more stable and improves the productivity.

  • Melt-on-demand tank melts the resin within 18 minutes.

  • Air over oil cylinder gives larger clamp force for larger part.

  • Key components adopt modular design, easy for maintenance and change.

  • Four temperature control zones work independently. Over temperature alarm, automatic heating are included.

  • Two palm buttons and light curtain to protect the operator.

  • Ejection system is equipped.


Application

   LPMS? machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.

  The benefits of side injection is that when one large cavity being encapsulated from the center of the mold, which can prevent the gate mark from the center of product.




Specification

Machine Size / Weight

40.5 in x 45.28 in x 77.17 in / 1366 lbs

Footprint

40.5 in x 45.28 in

Working Station Height

850 mm  |  33.47 in

Packing Size / Weight

44.49 in x 49.21 in x 81.10 in / 1455 lbs

Melting Tank Model & Q'ty

LPMS-MOD-07-2200H-DSAF1 x2

Auto Feeding System

LPMS D10

Gun Model & Tip

LPMS-LG02 x 2 / 36.4°

Heated Hose Model & Q'ty

N/A

Electricity

200-240VAC / 1Phase / 50 or 60Hz

Temperature Control Zones

4

Temperature Range

Ambient up to 250℃

Max .Power

10 kw

Min. Air Pressure

0.5 Mpa

Air Consumption

0.18 m3 / min

Clamping

Air Over Oil Cylinder

Clamping Force

10 T

Clamping Stroke

150 mm

Control System

PLC+7 in HMI

Safety device

Light Curtain

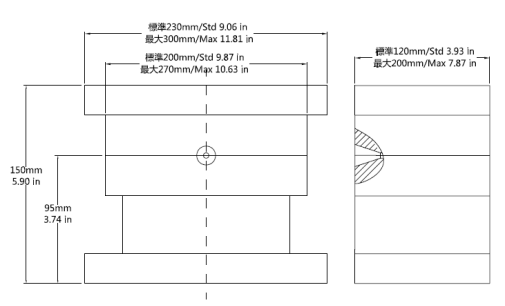

Mold Set Size

9.06 in x 4.72 in x5.91 in / 55 lbs

Max . Mold Set Size

11.81 in x 7.87 in x 5.90 in

Max . Part Size

2.36 in x 1.97 in x 0.71 in

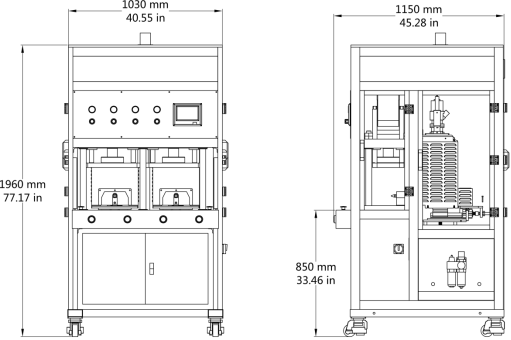

Dimension
