User-friendly operation.
Dual independentworking stations.
Separate 7 liter melting tank. Multiple meltingtank is optional.
LPMS specially designed melt-on-demand tank can melt down the resin swiftly and evenly.
The gear pump is made of hard-wearing material,which is stable,injection volume accuracy ±0.1g,maximum shot size is 5.8g/s.
Injection pressure range 1~50kg, which can be controlled by the pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.
Five thermal control zones for precise melt control.
Application
LPMS? machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.
The benefit of vertical injection is that when smaller parts allow the cavity to be split into two or four cavities. This allows shorter runners and higher output per cycle. It’s suitable for multiple cavity mold for cable, wire harness, LED, etc.
Specification
Machine Size / Weight | 1300 mm x 780 mm x 1670 mm / 540 kg 51.18 in x 30.71 in x 65.75 in / 1190 lbs |
Footprint | 1300 mm x 1700 mm | 51.18 in x 66.93 in |
Working Station Height | 850 mm | 33.46 in |
Packing Size / Weight | 1370 mm x 910 mm x1750 mm / 580 kg 53.94 in x 35.83 in x 68.90 in / 1279 lbs |
Melting Tank [1] | Melt on demand 7 literx 1 |
Auto Feeding System | Optional |
Gun Model & Tip | LPMS-G08 x2 / 36.4° |
Heated Hose[2] | 1.6 mx 2 |
Electricity[3] | 200-240VAC/1 Phase/50 Hz |
Temperature Control Zones | 5 |
Temperature Range | Ambient up to 250°C / 485°F |
Max.Power | 6Kw |
Min. Air Pressure | 0.5MPa | 73 Psi |
Air Consumption | 0.18 m3 / min | 6.3ft3 / min |
Clamping | Air Cylinder |
Clamping Force | Max.1.2 Ton |
Clamping Stroke | 150 mm | 5.91 in |
Control System | 7 ”HMI , PLC controlled |
Safety Protection | Light curtain, emergency stop button |
Std. Mold Set Size | 230 mm x120 mm x150 mm / 25 kg 9.06 in x4.72 in x5.91 in / 55.12 lbs |
Max . Mold Set Size | 300 mm x 200 mm x150 mm 11.81 in x7.87 in x 5.90 in |

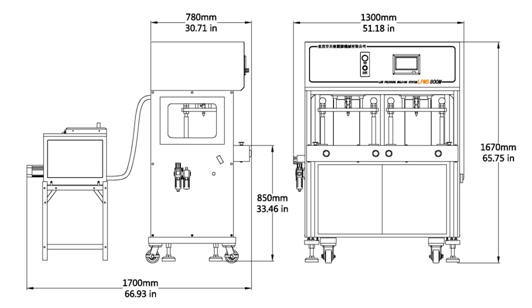

Dimension
