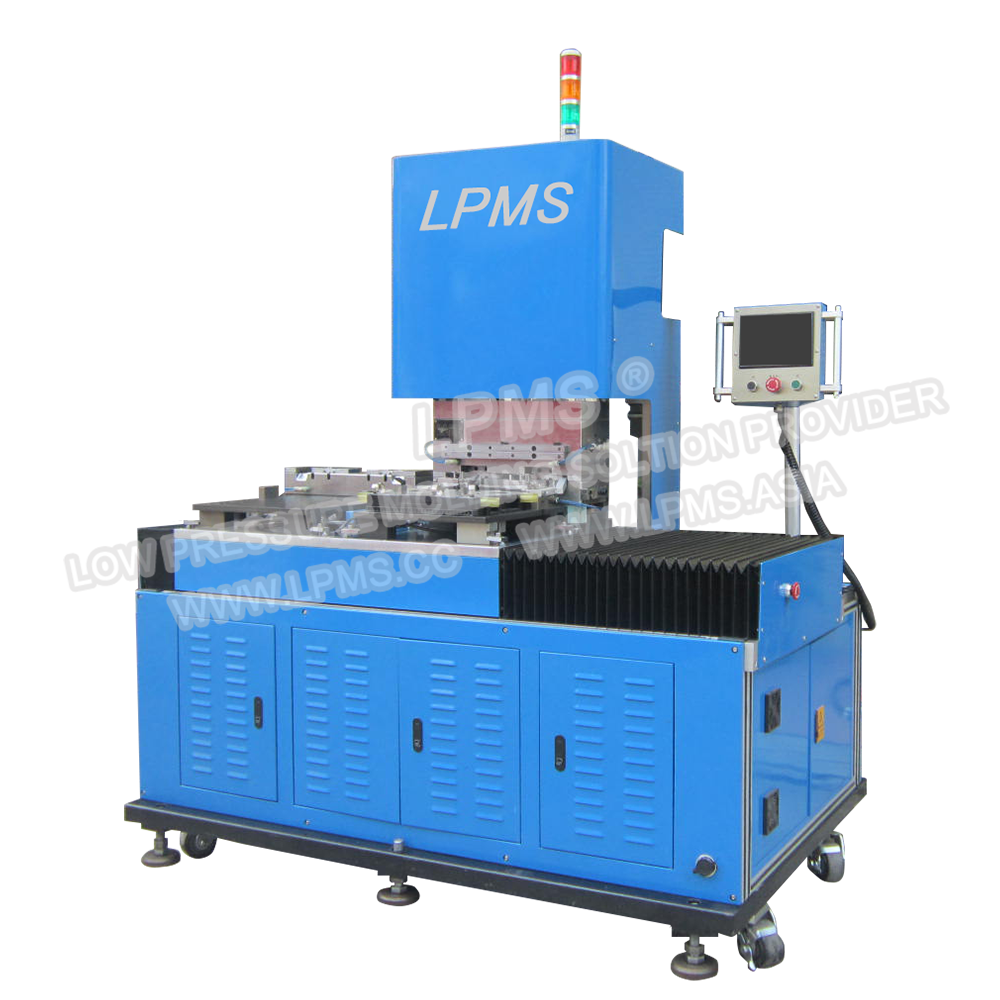

Left and right shift table, an upper mold of with two lower mold, production process automation.
Equipment control system and pipeline control system good linkage to ensure the synchronization and consistency of product for each process.
Melt-on-demand tank, only 8 to 15 minutes to work after boot (based hot melt adhesive softening temperature in 100 ~ 160 ℃ measured).
Hot runner system, no outlet material, cost savings, while improving the appearance of the product surface.
Machines with self-diagnostic functions and various fault alarm.
Machine three-stage temperature control, melting tank, gun can be independently controlled.
Timed heating, over-temperature alarm and automatically stop heating.
Pick and place products and opening and closing mold not in the same place, but all operations by the robot, efficient and safe.
Automatic feeding systems, optional dryer machine, improve work efficiency.
Mold cooling system, shorten product cooling time.
Application
Automated production line design, improve product competitiveness.Our machines are engineered for low pressure molding applications. Using specialty resins to encapsulate delicate parts.
Applications including : automotive electronics, PCBA,coil, fiber-optic, LED lighting, wire, cable, etc.
Specification
Machine Size | 1710 mm x 1242 mm x 2004 mm 67.32 in x 48.90 in x 78.90 in | |
Footprint | 1710 mm x 1242 mm | 67.32 in x 48.90 in | |
Working Station Height | N/A | |
Packing Size / Weight | 1850mm x 1400mmx 2150mm 72.83 in x 55.12 in x 84.65 in | |
Melting Tank Model & Q'ty 1 | Melt-On-Demand Tank 3 Liter | |
Auto Feeding System | Ultrasonic | |
Gun Model & Tip | Hot-Runner System | |
Heated Hose Model& Q'ty 2 | LPMS-H12J x 1 | |
Electricity | 200-240VAC / 1 Phase / 50 Hz | |
Temperature Control Zones | 7 | |
Temperature Range | Ambient up to 446°F | |
Max .Power | 6 Kw | |
Min. Air Pressure | 0.5 MPa | 73 Psi | |
Air Consumption | 0.1m3 / min | 3.5ft3 / min | |
Clamping | Air Cylinder | |
Clamping Force | Max.1.0 Ton | |
Clamping Stroke | 75 mm | 2.95 in | |
Control System | PLC+7 in HMI |

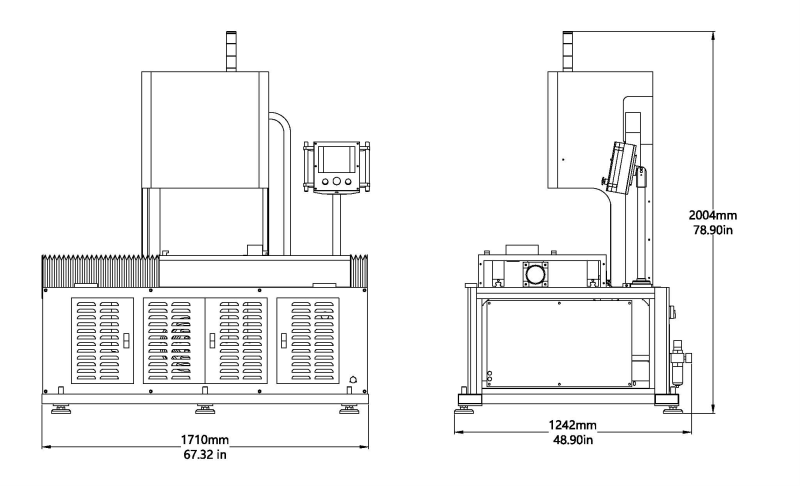

Dimension
Machine dimension
