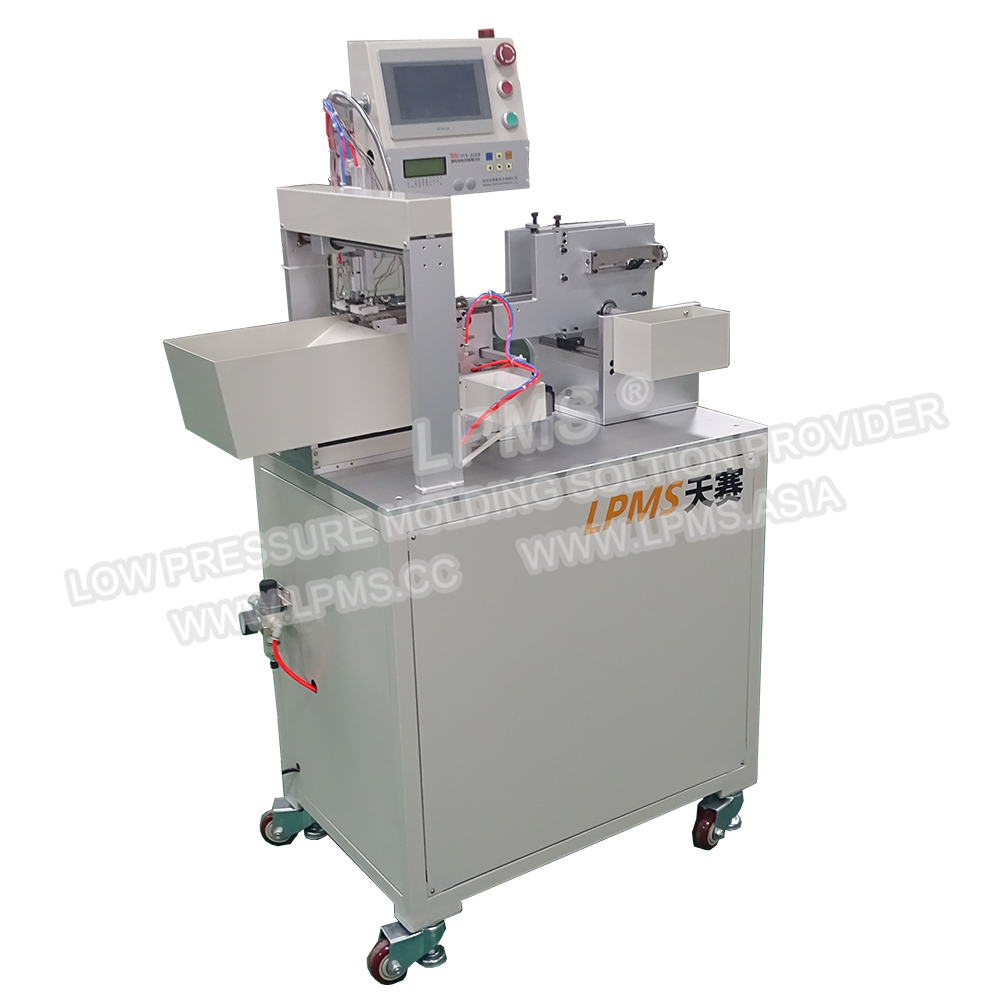

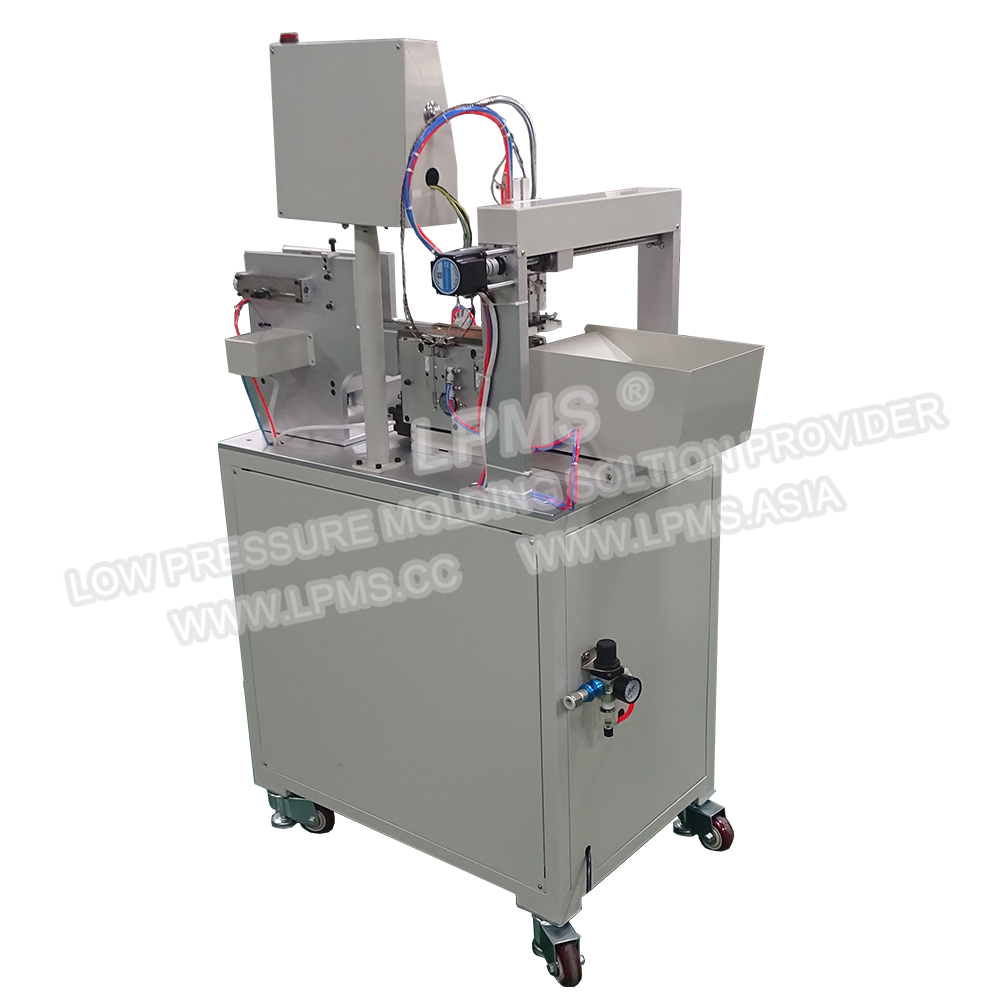

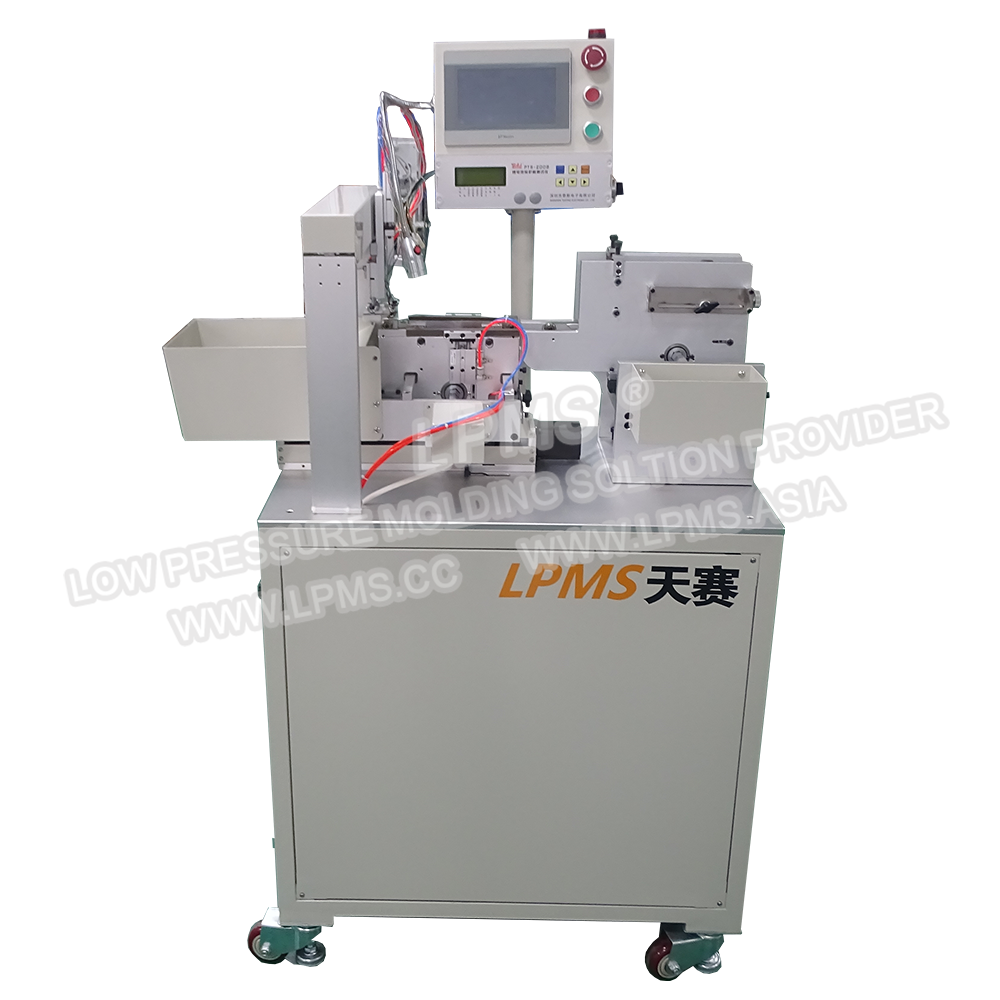

l The TS JC1 automatic PCB testing machine is composed of automatic PCB feeding device,movable table, testing device, control system and a tester.
l It can test the PCB power consumption, overcharge protection,over-charged recovery voltage, over-discharge protection, over-discharge recovery voltage, over-current protection functions of a single lithium battery.
l Automatic entry and exit, high test speed,high accuracy,easy to operate,does not need the guarding of a special person.
l The automatic PCB feeder sends out a stack of PCB one by one, which can fill thousands of PCB one time.
l The moving workstation catches the PCB provided by the automatic feeding plate device and automatically moves it to the test position according to the set data for testing.
l The tested PCB will be automatically sent from the moving station and dropped into the receiving box.
l The defective products are automatically re-tested. After the re-tested, the defective products are automatically identified. The number of defective PCB is also recorded by the system.
l The position of the detection needle can be adjusted at will to meet the test of different types of PCB.
l The marker adopts large oil pen, durable and easy to replace.
l Using touch screen to set parameters. Simple and clear.
l Up to 100 groups of PCB parameters can be stored in the system for easy invocation.
Specification
Dimension and weight | 800 mm * 500 mm * 1230 mm 100Kg |
Electricity | AC220V±10% 50Hz±2Hz |
Air pressure input | 0.4-0.6MPa |
Power | 1kw |
Test object | Single battery PCB、2-in-1 battery PCB |
Productivity | About 3000Pcs/H (Fortune Semiconductor). About 1500Pcs/H (SEIKO) |
Accuracy range | Voltage:±0.01v / Currency:±0.2A |
Accuracy range | Internal resistance:±2MΩ / Resistance :±2% |
