Adopts high precision screw cylinder and hot runner system. High precision injection volume. Lower material cost.
All the molding parameters are monitored, protected and controlled to ensure molding quality.
Multiple injection zones with different injection time&pressure, different holding time&pressure, different volume is optional.
temperature zones for screw cylinder. Injection nozzle and hot runner system temperature can be controlled independently.
Injection servo system is intelligent controlled. Injection speed and torque are adjustable to ensure high precision molding.
Compact design saves space and lower mold set cost.
Over-temperature alarm and automatically cut off the heating power.
Safety light curtain and two palm buttons to protect operator during the operation.
Ejection system is included. Auto-feeding system and dryer system are optional.
Application
The machine is engineered for small part molding. The precise screw pump ensures the precise injection volume. Servo system and 24 bit high precision absolute encoder ensures injection high reliability and high repetition accuracy.
Applications including : all types of micro parts high precision molding.
Specification

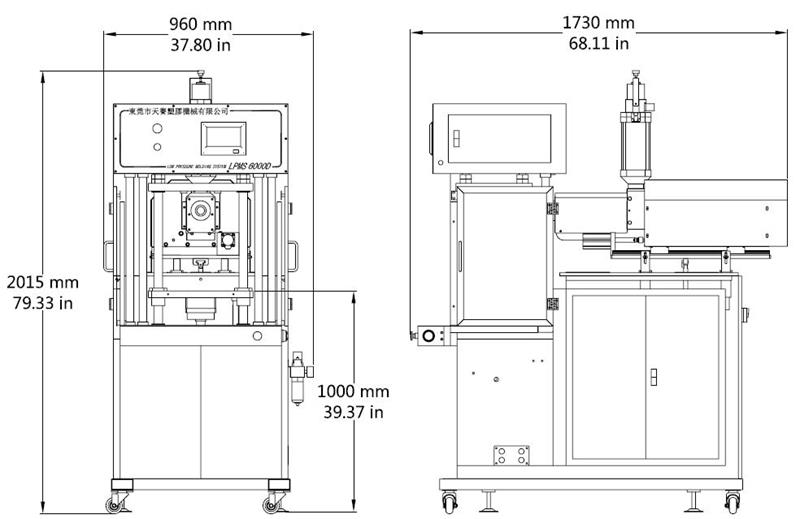

Machine Size / Weight | 960 mm x 1730 mm x 2015 mm / 540 kg |
Working Station Height | 1000 mm |
Injection system & Q'ty | Screw pump |
Screw diameter | 16 mm |
Screw max speed | 500 Rev / min |
Torque | 0~21.5 N.M |
Injection Stroke | 70 mm |
Injection Volume | 14 cm3 |
Injection Pressure | 0-63 MPa |
Injection speed | 500 mm / s |
Injection type | Hot runner system |
Clamping | Air Over Oil Cylinder |
Clamping Force / Stroke | 5T / 150 mm |
Ejection | Air cylinder |
Ejection force / stock | 100 N / 10MM |
Electricity 1 | AC200-240 VAC/1 Phase/50 Hz |
Max .Power | 6 Kw |
Servo Power | 1.5 kw |
Temperature Range | Ambient up to 250°C / 485°F |
Min. Air Pressure | 5 Bar |
Control System | PLC+7”HMI |
Auto Feeding System | Optional |
Safety Device | Light curtain and 2 palm buttons |

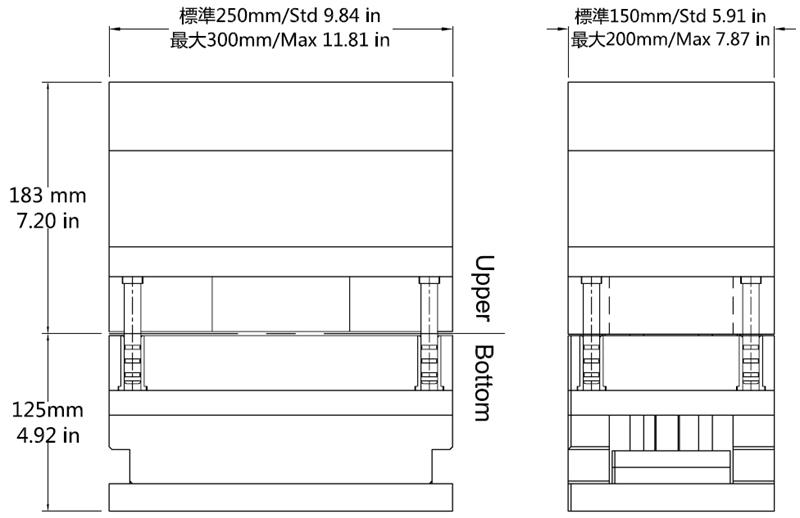

Mold Set Size | 250 mm x 150 mm x 308mm |
Max . Mold Set Size | 300 mm x 200 mm x 308 mm |
Dimension
